The MAX-303, 300W xenon light source, is the high-power illuminator with heat blocking design by the proprietary optical component, mirror module.
The MAX-303 has various useful functions such as mirror module, filter wheel, ND variable control, timer, shutter and remote control.

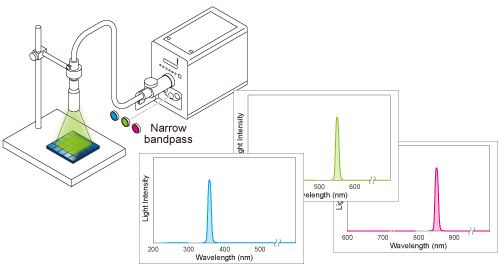

Monochromatic light output by optical filter

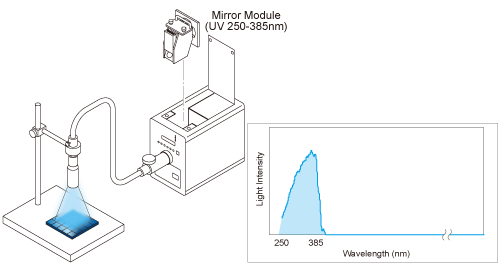

UV light output without IR heat

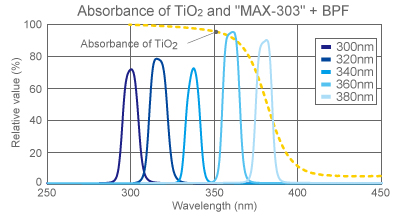

We offer a wide variety of narrow bandpass filters for a monochromatic illumination.
The output light from the MAX-303 is delivered to a desired direction by the light guide.
We also offer a multi-branch light guide for custom.
Each collimator lens is designed to provide the uniform illumination by using with the light guide.
|Output wavelength||250 - 1050nm|
|(It depends on the mirror module.)|
|Input voltage||AC100 - 240V 50/60Hz|
|(Input range: AC100 - 240V)|
|Apparent power||Less than 530VA (AC100V/50Hz)|
|Less than 520VA (AC240V/50Hz)|
|Lamp type||Cermax xenon lamp 300W|
|Lamp voltage, current||14V, 21A (DC) *Representative value|
|Guaranteed lighting time||500h *Less than 1 year after delivery|
|Optical axis alignment||Cartridge type (Alignment-free)|
|Cooling method||Forced air cooling|
|Shutter||Pulsed motor drive|
|Exposure time set||0.5 - 99999.9sec|
|Light intensity control||100 - 5 (Steps) Continuously variable|
|Filter wheel||8 channels *25mm dia/ t<6mm filter is usable|
|Mirror module||UV Type(250-385nm), UV-VIS Type(300-600nm),|
|VIS Type(385-740nm), IR Type(750-1050nm)|
|Remote control||RS232C *The cable must be less than 3m|
|Safety mechanism||Xenon lamp problem, Top door is open,|
|Lamp usage exceeds 500 hours,|
|Cooling fan problem, Temperature anomaly|
|Recommended environment||Temperature 10 - 35 deg C|
|Humidity 20 - 80% *Avoid condensation|
|Dimensions||196(W) x 345(D) x 302(H)mm|
